Profilometer

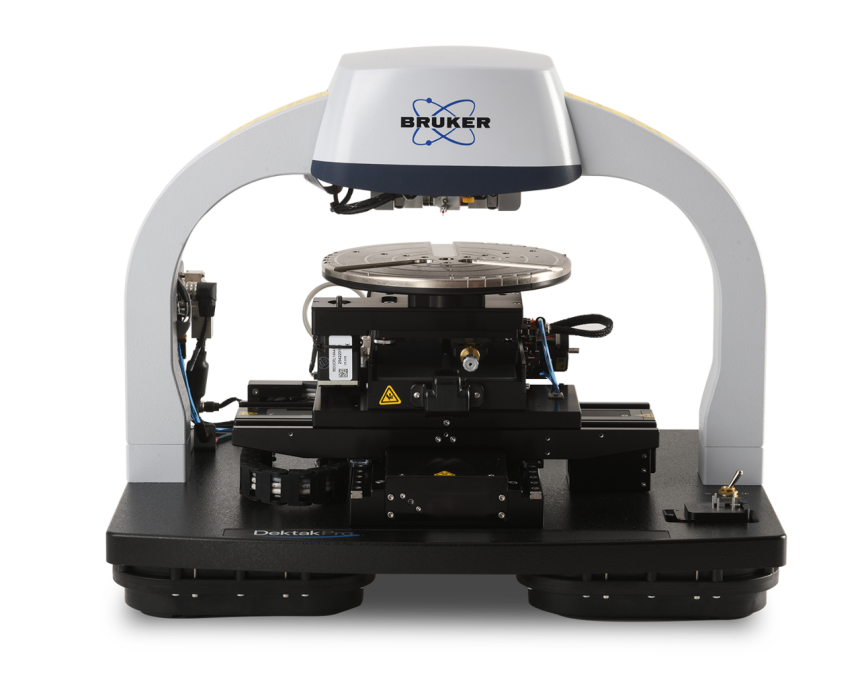

Bruker DektakXT-M

The Bruker DektakPro is a stylus surface profilometer used to characterize surface topography, waviness, and roughness in the nanometer range, as well as to measure step heights and thin- and thick-film thicknesses. Measurements are performed by scanning a diamond-tipped stylus across the sample surface. The system provides two-dimensional surface profiles and, with the optional 3D Mapping Option, three-dimensional surface topography measurements and analyses. It offers a step-height repeatability of 5 Å (<0.6 nm).

Range: The system offers ranges of 6.5 µm (0.1 nm resolution) for fine features, 65.5 µm (1.0 nm resolution) for general applications, and 524 µm (8.0 nm resolution) for thick films or rough and curved surfaces.

Stylus Force: Enter a value between 1 mg and 15 mg.

Length: Enter a scan length between 50 um and 55,000 um (55 mm) for a non-stitched measurement.

User Support and Scientific Advice:

Bruno Martins Magalhaes bmartins@ista.ac.at

Carola Rando  carola.rando@ista.ac.at

Evgeniia Volobueva evgeniia.volobueva@ista.ac.at
